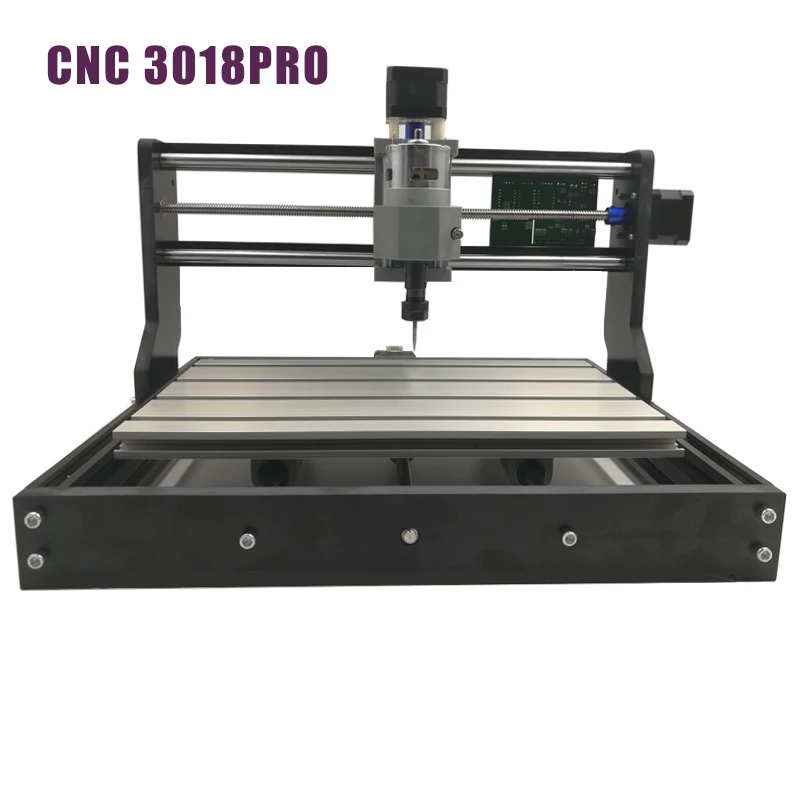

CNC 3018 PRO Laser Engraver Wood CNC Router Machine GRBL ER11 Hobby DIY Engraving Machine for Wood PCB PVC Mini CNC3018 PRO Engraver
Notice: CNC3018 and CNC3018 PRO have the same function and engraving area except the frame material and shape.This 3018PRO is much more light and portable,convenient,Easier to install (Just need about 20 minutes to finish)
Frame Material of CNC3018 PRO: High Quality Phenolic Resin
Frame Material of CNC3018: Aluminum alloy
Standard: CNC3018 PRO+ER11+4pcs clips+10pcs bits

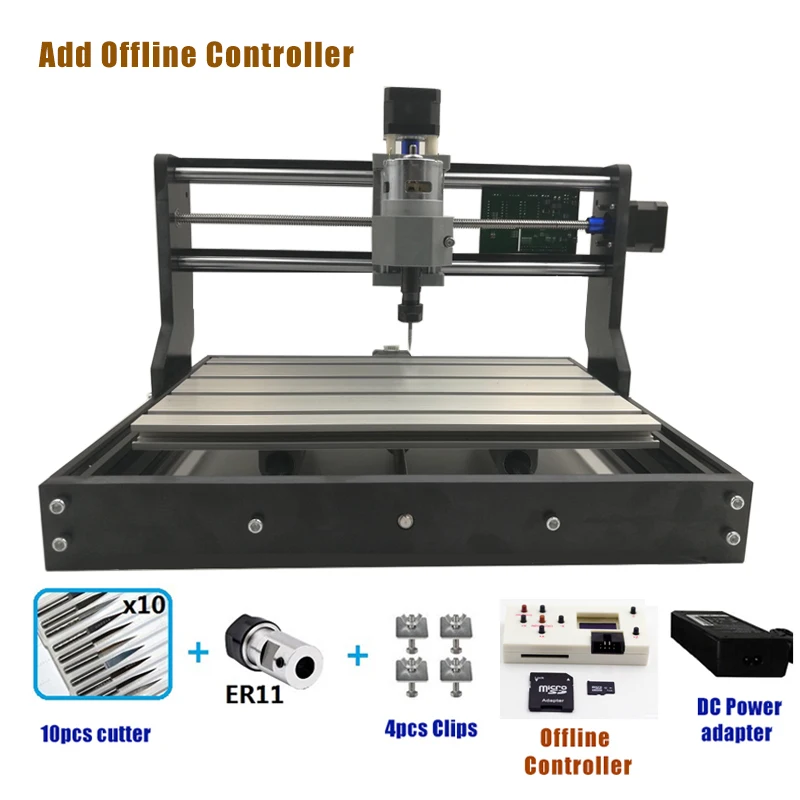

Add Offline Controller: CNC3018 PRO+ER11+4pcs clips+10pcs bits+Offline Controller
Add Laser: CNC3018 PRO+ER11+4pcs clips+10pcs bits+Goggle+Laser(Which one you choose)
Function and Parameter:
Engraving area: 300x180x45mm;
Aluminum alloy Plate area:300x180mm;
Spindle Motor:DC24V, Max. 120Watt ,10000rpm;
Stepper Motor: Input DC12V,1.3A, 0.3Nm Torque;
Power Supply:Input AC100-240V,50/60Hz, 1.3A, Output DC24V 5A;
Control Software: GRBL Control;
Available System for PC: Windows XP/7/8/10(Not support Mac OS);

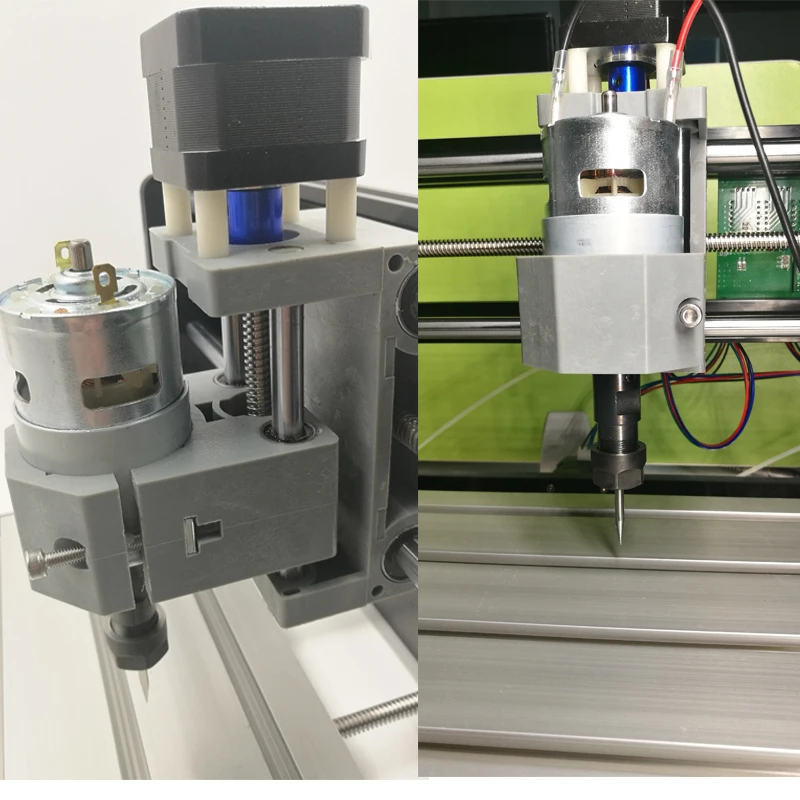

ER11 was installed on the spindle motor
3 Axis engraving for: Wood,Plastic,PCB,Acrylic,Plywood,etc.
Laser engraving for: Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.
Note:The 10W Fixed Focus laser can engrave on stainless steel and anodized aluminum.
