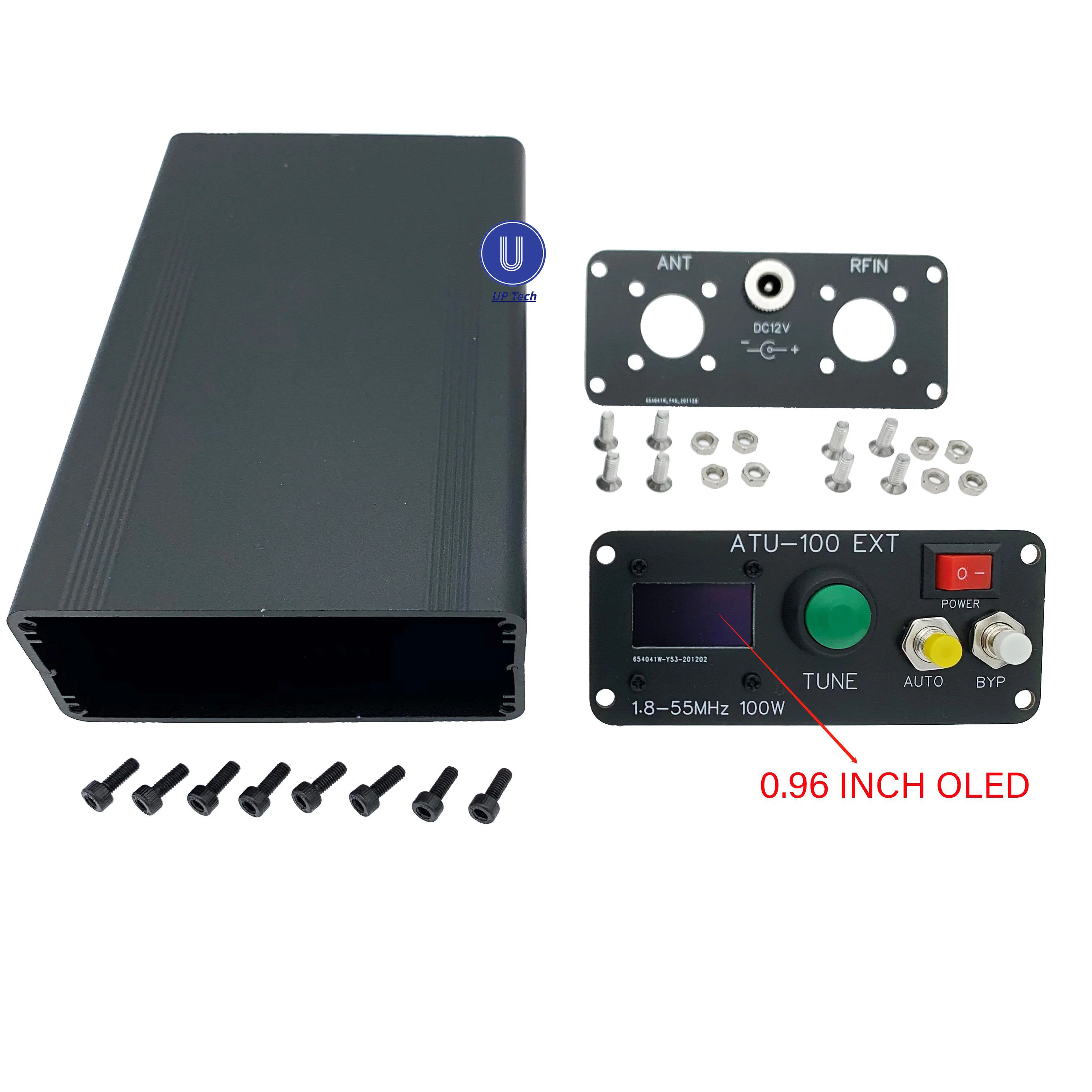

Only Shell: Size:140MM*88MM*38MM
Shell 1

Shell 2

Shell 3:BNC

Shell 4:SMA

New in the version 3.1
The fider loss value now is zero by default, the tuner board shows mismatch loss only. To install your actual fider loss, power on the board with pushed TUNE button, use BYP and AUTO buttons to set needed value. The value will be saved immediatelly in the long-term memory (0x34 cell for extended board or 0x32 cell for mini boards).
Some errors were fixed.
Overload indication is fixed. It works when the input power exceeds the board possibility to meassure correct power.
Can be made: Finished machine 1
1.SIZE: 140 x 88 x 38 mm (L*W*H)
Can be made: Finished machine 2
1.SIZE: 140 x 88 x 38 mm (L*W*H)
Other machine:The board has been burned 3.1 program:
①If you need to buy the machine, please click the link:
https://www.aliexpress.com/item/1005001804198586.html?spm=a2g0s.12269583.0.0.3ef54a959EzR4a
②If you need to buy a kit, please click the link:
https://www.aliexpress.com/item/1005001631130591.html?spm=a2g0s.12269583.0.0.250d4f54MMeLrd
